Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1540 1560 with exchange table and cover

Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1540 1560 with exchange table and cover

          ( 0 đánh giá )

Tình trạng: Còn hàng

Liên hệ

FOB Reference Price Range USD:
20000-40000
Model Number:
LXF1530G
Lead time:
10-15 working days
Payment Term:
T/T;Alibaba trade assurance;West Union;Paypal;L/C
Machine Size:
Exchange table Machine size: 5200*3000*2400mm Water chiller +Controller: 1830*920*2110mm
Machine Weight:
7000KG
Brand:
LXSHOW
Warranty:
3 years
Shipping:
By sea/By air/By land

NHẬP THÔNG TIN ĐỂ ĐƯỢC TƯ VẤN

product-Lxshow-img-1 MACHINE INDICATE product-Lxshow-img-1

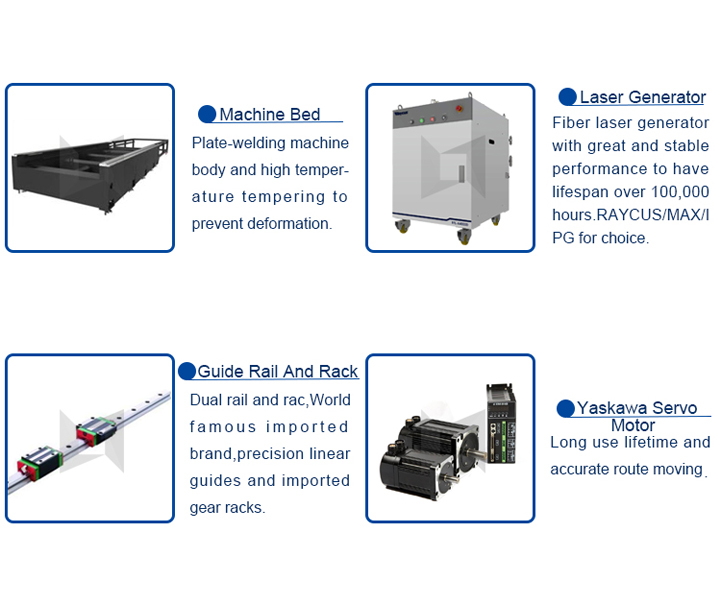

product-Lxshow-img-1 MACHINE PARTS product-Lxshow-img-1



product-Lxshow-img-2
product-Lxshow-img-2
product-Lxshow-img-2

product-Lxshow-img-1 APPLICATION AND SAMPLES product-Lxshow-img-1




APPLICATION



Applied materials:
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and  many kinds of metal materials cutting and so on.

Applied  Industry:

Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.


product-Lxshow-img-3
product-Lxshow-img-3
product-Lxshow-img-3

product-Lxshow-img-1 CHARACTURE product-Lxshow-img-1




High Cutting Speed

Cutting speed is 2-3 times than same power CO2 laser cutting machine.

Stable Running

Adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours.

High Efficiency

For photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.

Low Cost

Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.

Low Maintenance

Fiber line transmission no need reflect lens, save maintenance cost

Easy Operations

Fiber line transmission, no adjustment of optical path.


product-Lxshow-img-1 PRODUCT PARAMETER product-Lxshow-img-1





product-Lxshow-img-1 PRODUCT SELECTION product-Lxshow-img-1




Material

Thickness

（mm）

500W

1000W

1500W

2000W

3000W

4000W

6000W

8000W

10000W

12000W

Cutting   Speed(m/min)

Carbon Steel

(O2)

1

7.0~8.0

7.0~9.0

7.0~11.0

7.0~12.0

7.0~12.0

7.0~12.0

7.0~12.0

7.0~12.0

7.0~12.0

7.0~12.0

2

4.0~5.0

5.0~6.0

5.0~6.5

5.0~6.5

5.0~7.0

5.0~7.0

5.0~7.0

5.0~7.0

5.0~7.0

5.0~7.0

3

2.0~2.5

2.5~3.0

2.8~3.8

3.0~4.6

3.5~5.0

3.5~5.0

3.5~5.0

3.5~5.0

3.5~5.0

3.5~5.0

4

1.5~2.0

2.0~2.4

2.5~3.2

2.8~4.0

3.0~4.2

3.0~4.2

3.0~4.2

3.0~4.2

3.0~4.2

3.0~4.2

5

1.2~1.5

1.5~1.8

1.8~2.5

2.2~3.2

2.5~3.6

2.5~3.6

2.5~3.6

2.5~3.6

2.5~3.6

2.5~3.6

6

1.0~1.4

1.4~1.6

1.6~2.2

2.0~2.8

2.4~3.0

2.4~3.0

2.4~3.0

2.4~3.0

2.4~3.0

2.4~3.0

8



1.0~1.2

1.1~1.5

1.4~2.0

1.8~2.4

1.8~2.4

1.8~2.4

1.8~2.4

1.8~2.4

1.8~2.4

10



0.75~0.85

1.0~1.2

1.1~1.4

1.2~1.8

1.2~1.8

1.2~1.8

1.2~1.8

1.2~1.8

1.2~1.8

12



0.6~0.7

0.9~1.0

0.9~1.2

1.0~1.5

1.0~1.5

1.0~1.5

1.0~1.5

1.0~1.5

1.0~1.5

16



0.6~0.75

0.7~0.85

0.7~0.85

0.7~0.85

0.7~0.85

0.7~0.85

0.7~0.85

20



0.6~0.75

0.6~0.75

0.6~0.75

0.6~0.75

0.6~0.75

0.6~0.75

22



0.5~0.65

0.5~0.65

0.5~0.65

0.5~0.65

0.5~0.65

0.5~0.65

25



0.4~0.6

0.4~0.6

0.4~0.6

0.4~0.6

0.4~0.6

0.4~0.6



Material

Thickness

（mm）

500W

1000W

1500W

2000W

3000W

4000W

6000W

8000W

10000W

12000W

Cutting   Speed(m/min)

Stainless Steel

(N2)

1

10~12

15~18

10~15

35~50

45~55

45~55

45~55

45~55

45~55

45~55

2

2~4.0

4.5~6.0

5.0~7.0

10~15

15~23

18~27

20~35

23~37

26~40

28~43

3

0.7~2.0

2.0~2.4

3.0~4.0

5.0~7.0

7.0~11.0

10~15

15~20

19~24

23~28

27~32

4



1.0~1.5

2.0~2.8

3.5~4.5

4.0~6.0

5.0~7.5

10~14

14~17

18~22

22~26

5



0.75~0.85

1.2~1.7

1.8~2.5

2.5~4.0

4.0~5.0

8.0~12.0

11~14

14~17

16~18

6



0.7~1.0

0.7~0.8

2.0~3.2

3.0~4.0

6.0~8.0

8.0~9.5

9.5~11.0

10.5~12.0

8



0.5~0.7

0.5~0.6

1.2~1.8

1.5~2.6

3.5~4.0

5.0~5.5

6.5~7.0

7.5~8.0

10



0.7~0.9

0.7~1.3

1.8~2.2

2.5~3.0

3.4~3.9

4.0~4.5

12



0.3~0.4

0.4~0.6

1.2~1.5

1.8~2.1

2.6~3.1

3.3~3.6

16



0.3~0.5

0.8~1.2

1.5~1.8

2.2~2.5

2.7~3.0

20



0.3~0.5

0.6~0.8

1.0~1.3

1.7~2.0

2.2~2.5

22



0.3~0.4

0.6~0.75

1.0~1.2

1.4~1.6

25



0.3~0.5

0.4~0.6

0.6~0.8



Material

Thickness

（mm）

500W

1000W

1500W

2000W

3000W

4000W

6000W

8000W

10000W

12000W

Cutting   Speed(m/min)

Aluminum (N2)

1



10~15

30~45

30~38

35~40

45~55

45~55

45~55

45~55

2



5.0~6.0

10~15

12~16

13~22

20~30

27~35

33~40

36~43

3



2.5~3.5

5.0~7.0

6.5~8.0

7.0~13

13~18

15~18

18~22

23~26

4



1.4~2.0

3.5~5.0

3.5~5.0

4.0~5.5

10~12

12~13.5

15~18

19~22

5



0.8~1.0

2.0~3.0

2.5~3.5

3.4~4.0

5.0~8.0

9.0~12

14~16

17~19

6



0.5~0.6

1.5~2.0

1.8~3.0

2.2~3.5

4.0~6.0

7.5~9.5

10~12.5

13~15

8



0.5~0.6

0.9~1.3

0.9~1.6

2.0~3.0

4.0~4.8

5.8~6.5

6.8~7.2

10



0.4~0.7

0.55~1.0

1.0~1.9

1.5~2.7

3.0~3.8

3.7~4.2

12



0.3~0.45

0.4~0.6

0.8~1.4

1.6~1.9

2.4~2.7

3.3~3.6

16



0.3~0.4

0.6~0.9

1.0~1.2

1.4~1.6

1.7~1.8

20



0.4~0.6

0.8~0.9

1.0~1.2

1.2~1.6

22



0.7~0.85

0.9~1.0

1.1~1.2

25



0.35~0.45

0.6~0.7

0.8~0.9



Material

Thickness

（mm）

500W

1000W

1500W

2000W

3000W

4000W

6000W

8000W

10000W

12000W

Cutting   Speed(m/min)

Brass (N2)

1



8.0~12

12~18

20~32

25~30

45~55

45~55

45~55

45~55

2



3.5~5.0

6.0~8.5

9.0~11

10~13

25~35

27~35

33~40

36~43

3



1.5~2.2

2.5~4.0

4.0~6.0

5.0~6.5

12~18

15~18

18~22

23~26

4



1.0~1.2

1.5~1.8

3.0~4.5

3.0~5.2

8.0~10

12~13.5

15~18

19~22

5



0.6~0.8

0.8~1.2

1.5~2.0

2.0~3.0

4.5~6.0

9.0~12

14~16

17~19

6



0.4~0.5

1.0~1.6

1.4~2.0

3.0~4.0

7.5~9.5

10~12.5

13~15

8



0.5~0.6

0.7~0.8

1.6~2.2

4.0~4.8

5.8~6.5

6.8~7.2

10



0.2~0.3

0.8~1.2

1.5~2.7

3.0~3.8

3.7~4.2

12



1.6~1.9

2.4~2.7

3.3~3.6





product-Lxshow-img-1 COMPANY PROFILE product-Lxshow-img-1




Jinan Lingxiu Laser

Is established in July 2004 owns more than 500 square meters of researching and office  space, more than 32000 square meters factory All machines, passed the European Union CE authentication American FDA cerificate and are certied to ISO 9001. Products are sold to USA, Canada, Australia, Europe. South east Asia, Afica etc, more than 120 counties and areas, and supply OEM service for more than 30 manufactures.


Our Products includes All kind of

1.Fiber laser cutting machine/Laser marking/welding/CO2 laser engraving/cleaning machine. 2.Vibrating knife cutting machine.



We can also customized non-standard assist equipment as your detailed work reauirements.

product-Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1540 156-5
  • product-Lxshow-img-5
  • product-Lxshow-img-5
  • product-Lxshow-Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1-5
  • product-Lxshow-img-5
  • product-Lxshow-img-5


product-Lxshow-img-1 CERTIFICATE product-Lxshow-img-1



  • product-Lxshow-Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1-6


  • product-Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1540 156-7


  • product-Lxshow-img-6


  • product-Lxshow-img-6


  • product-Lxshow-img-6


  • product-Lxshow-Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1-6


  • product-Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1540 156-7


  • product-Lxshow-img-6


  • product-Lxshow-img-6


  • product-Lxshow-img-6



product-Lxshow-img-1 OUR FACTORY product-Lxshow-img-1



product-Lxshow-img-7
product-Lxshow-img-7

product-Lxshow-img-1 PACKAGE & SHIPMENT product-Lxshow-img-1



product-Lxshow-img-8

FAQ


product-Lxshow-img-8

Why choose us


product-Lxshow-img-8

 Package




1

Machine Name



1500W 2200W 3300W High Power Metal Plate Fiber Laser cutting machine LXF3015G

2

Model

LXF3015G

3

Laser machine cutting area





3000x1500mm

(Other size can be customized,such as 4500x1500/6000x1500/6000x2000mm)

4

Fiber Laser Power
CO2 Laser Power





500w/750w/1000/1500/2200/3300/4000/

6000/8000/12000/25000W



5

Laser wave length

1064nm

6

Transmission system



Gear + rails

(we have standard brand,we can also produce as your requirements)

7

X.Y axis location accuracy

±0.01mm

8

X.Y axis repeat location accuracy

±0.01mm

9

X.Y axis max moving speed

30m/min

10

Max cutting speed

1--30m/min(it will according to metal material and laser power and machine configuration)

11

Cutting thickness

Detailed in the following cutting thickness

12

Application Material



Metal sheet

Iron/CS/SS/Aluminum/Copper and all kinds metal

13

Advantages

>Excellent beam quality
>Simple , compact, electrically and optically efficient
>Compatibly powerful and reliable
>Maintenance free
>multilingual, more than 11 foreign languages
>3 years warranty .

14

Gross weight

7500KG

15

Net weight

7250KG

16

Machine size





Exchange table Machine size:

5200*3000*2400mm

Water chiller +Controller:

1830*920*2110mm
